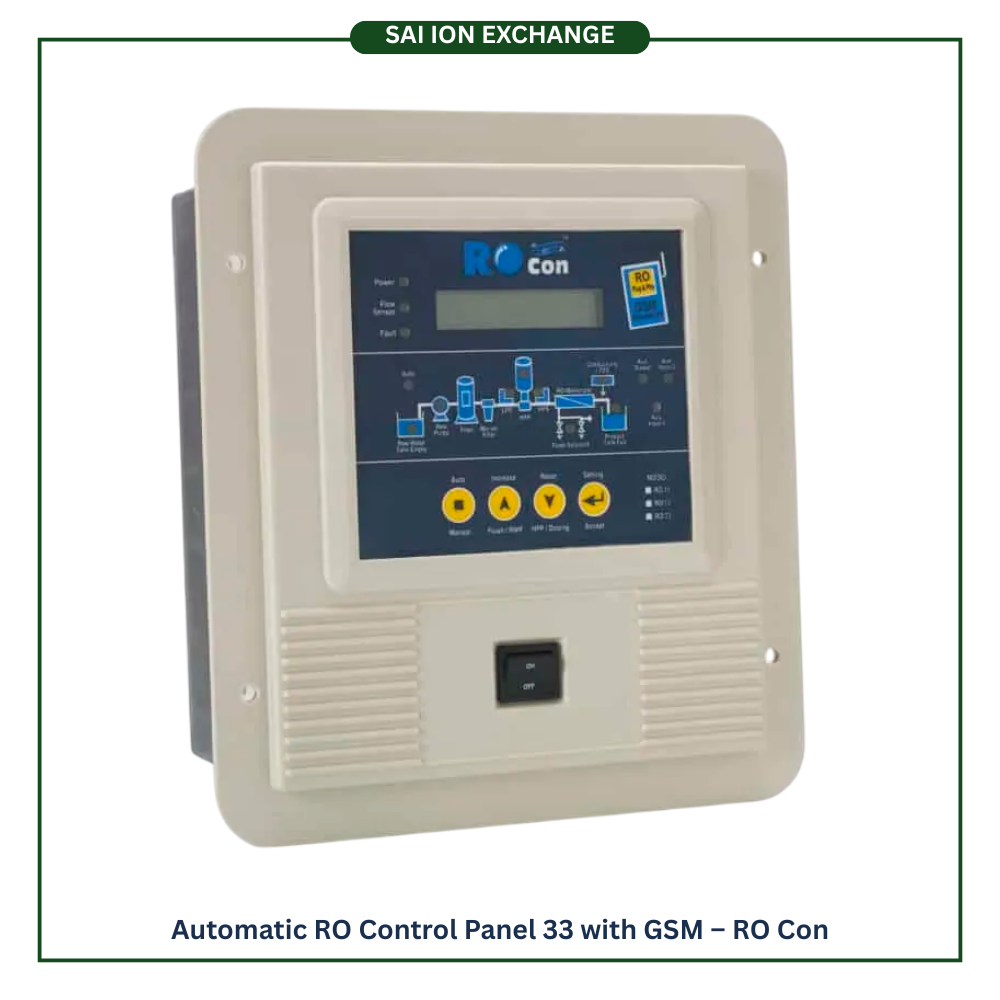

Automatic RO Control Panel 33 E with GSM – RO Con
₹ 15600
Description
RO CONTROL PANEL
RO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.
KEY FEATURES
- Microcontroller based software Technology.
- Complete RO logic pre-programmed.
- 16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.
- 4 Dome key based easy programming for more than 20 parameters.
- Five registered user can be added.
- Password protection.
- Android application based operation.
- All parameter and timer setting.
Features
- Current range from 0.3 – 16 Amps.
- Two float switches for Raw water tank & Product water tank.
- Supply for up to 5 HP three phase for RWP and 5HP three phase for HPP.
- Protection from dry run, overload, low voltage & high voltage for RWP and HPP.
- Panel inputs from LPS, HPS ,2 Float switch, conductivity, 2 flow sensors, 2 pressure transducer.
- Panel outputs to RWP, HPP , Dosing pump, flushing solenoid valve, Auxiliary output.
- Protection against extreme high current & phase failure.
- Microcontroller based digital product with high reliability and long life
- Can be configured for Auto Mpv’s
- Compact, vermin proof, rust proof, ABS design.
- Time Based Password Protection
- In Panel Calibration Options For Voltage, Ampere and Conductivity.
- Following parameter can be set using GSM facility:
- RWP dry run & overload current
- RWP dry run & overload trip time delay
- HPP dry run & overload current
- HPP dry run & overload trip time delay
- HPP ON & OFF delay
- Flow constant of flow sensor
- High conductivity alarm
- Conductivity trip time
- Flush time
- Auto flush ON & OFF
- Auto flush time
- Auto flush delay
- Reset flow meter
- Parameters visible on Android application
- RWP current
- HPP current
- Conductivity/ TDS
- Temperature
- Flow1
- Flow2
- Voltage
Specifications
| Input Voltage (AC) | 250-500 VAC 50Hz |
| Current Supply range | 0.3-16 Amps |
| Overload | 0.3-16A wide range, default 4A for RWP and HPP |
| High voltage | 230-280 V, default 250V |
| Low voltage | 150-200 V, default 150V |
| Dry run/ No load current | 0.4-16A wide range, default OFF HPP and RWP |
| RWP dry run trip time delay | 01-180 sec range, default 180 sec |
| RWP overload trip time delay | 01-30 sec range, default 15 sec |
| HPP dry run trip time delay | 01-180 sec range, default 180 sec |
| HPP overload trip time delay | 01-30 sec range, default 15 sec |
| HPP operation ON timer | 1-99 sec , default 15 sec |
| HPP operation OFF timer | 01-99 sec , default 15 sec |
| Dry run auto-start timer for RWP | 05-720 min, default OFF |
| Auto flushing valve on time | 05-100 sec, default 15 sec |
| Conductivity ignore time | 01-60 min, default 2 min |
| Power on timer | 01-300 sec range, default 60 sec |
| Conductivity | 0-200, default 80 |
| Flow Constant 1 | (6-3000), default OFF |
| HPP current unbalance | 20-70%, Default 50% |
| GSM log interval for android app | 01-720 min, default 60 min |
DESCRIPTION
RO CONTROL PANEL
RO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.
KEY FEATURES
- Microcontroller based software Technology.
- Complete RO logic pre-programmed.
- 16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.
- 4 Dome key based easy programming for more than 20 parameters.
- Five registered user can be added.
- Password protection.
- Android application based operation.
- All parameter and timer setting.
Features
- Current range from 0.3 – 16 Amps.
- Two float switches for Raw water tank & Product water tank.
- Supply for up to 5 HP three phase for RWP and 5HP three phase for HPP.
- Protection from dry run, overload, low voltage & high voltage for RWP and HPP.
- Panel inputs from LPS, HPS ,2 Float switch, conductivity, 2 flow sensors, 2 pressure transducer.
- Panel outputs to RWP, HPP , Dosing pump, flushing solenoid valve, Auxiliary output.
- Protection against extreme high current & phase failure.
- Microcontroller based digital product with high reliability and long life
- Can be configured for Auto Mpv’s
- Compact, vermin proof, rust proof, ABS design.
- Time Based Password Protection
- In Panel Calibration Options For Voltage, Ampere and Conductivity.
- Following parameter can be set using GSM facility:
- RWP dry run & overload current
- RWP dry run & overload trip time delay
- HPP dry run & overload current
- HPP dry run & overload trip time delay
- HPP ON & OFF delay
- Flow constant of flow sensor
- High conductivity alarm
- Conductivity trip time
- Flush time
- Auto flush ON & OFF
- Auto flush time
- Auto flush delay
- Reset flow meter
- Parameters visible on Android application
- RWP current
- HPP current
- Conductivity/ TDS
- Temperature
- Flow1
- Flow2
- Voltage
Specifications
| Input Voltage (AC) | 250-500 VAC 50Hz |
| Current Supply range | 0.3-16 Amps |
| Overload | 0.3-16A wide range, default 4A for RWP and HPP |
| High voltage | 230-280 V, default 250V |
| Low voltage | 150-200 V, default 150V |
| Dry run/ No load current | 0.4-16A wide range, default OFF HPP and RWP |
| RWP dry run trip time delay | 01-180 sec range, default 180 sec |
| RWP overload trip time delay | 01-30 sec range, default 15 sec |
| HPP dry run trip time delay | 01-180 sec range, default 180 sec |
| HPP overload trip time delay | 01-30 sec range, default 15 sec |
| HPP operation ON timer | 1-99 sec , default 15 sec |
| HPP operation OFF timer | 01-99 sec , default 15 sec |
| Dry run auto-start timer for RWP | 05-720 min, default OFF |
| Auto flushing valve on time | 05-100 sec, default 15 sec |
| Conductivity ignore time | 01-60 min, default 2 min |
| Power on timer | 01-300 sec range, default 60 sec |
| Conductivity | 0-200, default 80 |
| Flow Constant 1 | (6-3000), default OFF |
| HPP current unbalance | 20-70%, Default 50% |
| GSM log interval for android app | 01-720 min, default 60 min |
-
