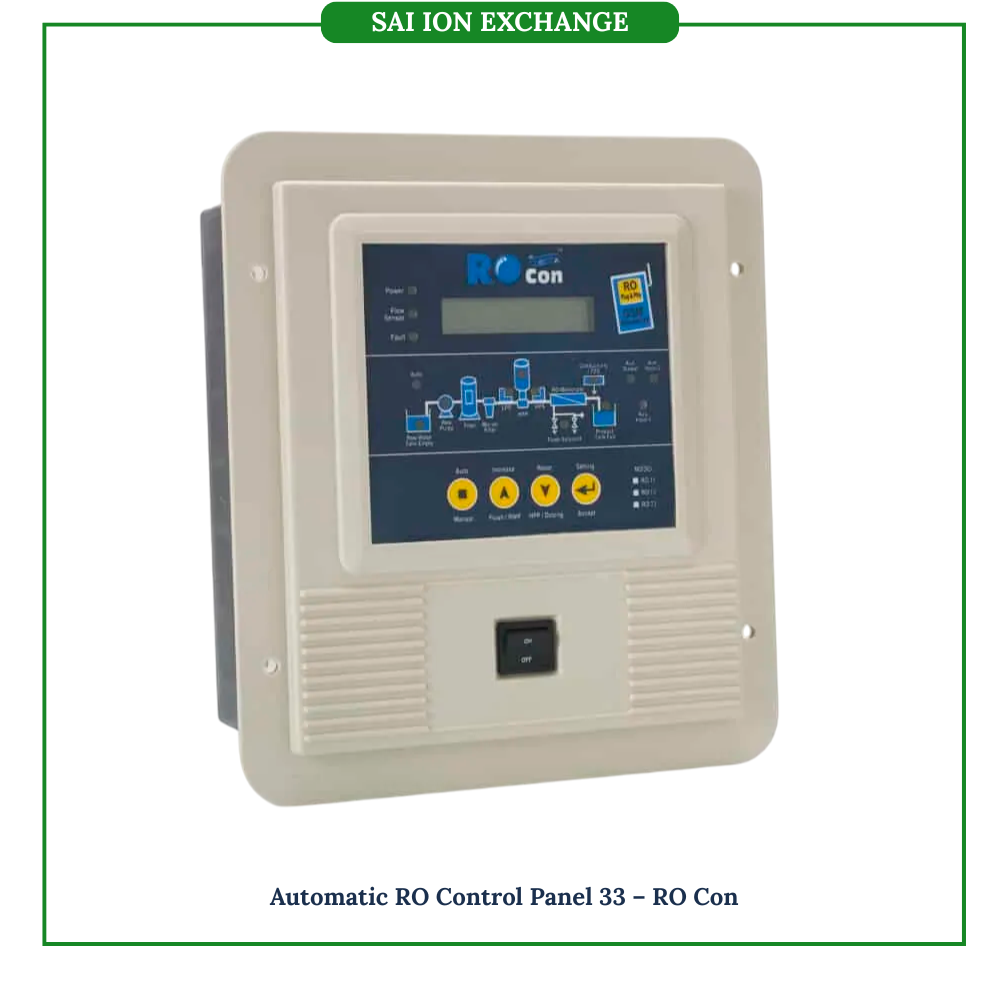

Automatic RO Control Panel 33 – RO Con

Automatic RO Control Panel 33 – RO Con

₹ 6021

Call Now
Call Now
Send Enquiry
Send Enquiry

Description

RO CONTROL PANEL

RO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.

KEY FEATURES

  • Microcontroller based software Technology.
  • Complete RO logic pre-programmed.
  • 16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.
  • 4 Dome key based easy programming for more than 20 parameters.

 Features

  • Current range from 0.3 – 16 Amps.
  • Two float switches for Raw water tank & Product water tank.
  • Supply  for up to 5 HP three phase  for RWP and 5HP three phase for HPP.
  • Protection from dry run, overload, low voltage & high voltage for RWP and HPP.
  • Panel inputs from LPS, HPS ,2 Float switch, conductivity, 2 flow sensors, 2 pressure transducer.
  • Panel outputs to RWP, HPP , Dosing pump, flushing solenoid valve, Auxiliary output.
  • Protection against extreme high current & phase failure.
  • Microcontroller based digital product with high reliability and long life
  • Can be configured for Auto Mpv’s
  • Compact, vermin proof, rust proof, ABS design.
  • Time Based Password Protection
  • In Panel Calibration Options For Voltage, Ampere and Conductivity.

Specifications

Input Voltage (AC) 250-500 VAC 50Hz
Current Supply range 0.3-16 Amps
Overload 0.3-16A wide range, default 4A for RWP and HPP
High voltage 230-280 V, default 250V
Low voltage 150-200 V, default 150V
Dry run/ No load current 0.4-16A wide range, default OFF HPP and RWP
RWP dry run trip time delay 01-180 sec range, default 180 sec
RWP overload trip time delay 01-30 sec range, default 15 sec
HPP dry run trip time delay 01-180 sec range, default 180 sec
HPP overload trip time delay 01-30 sec range, default 15 sec
HPP operation ON timer 1-99 sec , default 15 sec
HPP operation OFF timer 01-99 sec , default 15 sec
Dry run auto-start timer for RWP 05-720 min, default OFF
Auto flushing valve on time 05-100 sec, default 15 sec
Conductivity ignore time 01-60 min, default 2 min
Power on timer 01-300 sec range, default 60 sec
Conductivity 0-200, default 80
Flow Constant 1 (6-3000), default OFF
HPP current unbalance 20-70%, Default 50%

Reviews

There are no reviews yet.

Be the first to review “Automatic RO Control Panel 33 – RO Con”

Your email address will not be published. Required fields are marked *

DESCRIPTION

RO CONTROL PANEL

RO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.

KEY FEATURES

  • Microcontroller based software Technology.
  • Complete RO logic pre-programmed.
  • 16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.
  • 4 Dome key based easy programming for more than 20 parameters.

 Features

  • Current range from 0.3 – 16 Amps.
  • Two float switches for Raw water tank & Product water tank.
  • Supply  for up to 5 HP three phase  for RWP and 5HP three phase for HPP.
  • Protection from dry run, overload, low voltage & high voltage for RWP and HPP.
  • Panel inputs from LPS, HPS ,2 Float switch, conductivity, 2 flow sensors, 2 pressure transducer.
  • Panel outputs to RWP, HPP , Dosing pump, flushing solenoid valve, Auxiliary output.
  • Protection against extreme high current & phase failure.
  • Microcontroller based digital product with high reliability and long life
  • Can be configured for Auto Mpv’s
  • Compact, vermin proof, rust proof, ABS design.
  • Time Based Password Protection
  • In Panel Calibration Options For Voltage, Ampere and Conductivity.

Specifications

Input Voltage (AC) 250-500 VAC 50Hz
Current Supply range 0.3-16 Amps
Overload 0.3-16A wide range, default 4A for RWP and HPP
High voltage 230-280 V, default 250V
Low voltage 150-200 V, default 150V
Dry run/ No load current 0.4-16A wide range, default OFF HPP and RWP
RWP dry run trip time delay 01-180 sec range, default 180 sec
RWP overload trip time delay 01-30 sec range, default 15 sec
HPP dry run trip time delay 01-180 sec range, default 180 sec
HPP overload trip time delay 01-30 sec range, default 15 sec
HPP operation ON timer 1-99 sec , default 15 sec
HPP operation OFF timer 01-99 sec , default 15 sec
Dry run auto-start timer for RWP 05-720 min, default OFF
Auto flushing valve on time 05-100 sec, default 15 sec
Conductivity ignore time 01-60 min, default 2 min
Power on timer 01-300 sec range, default 60 sec
Conductivity 0-200, default 80
Flow Constant 1 (6-3000), default OFF
HPP current unbalance 20-70%, Default 50%
