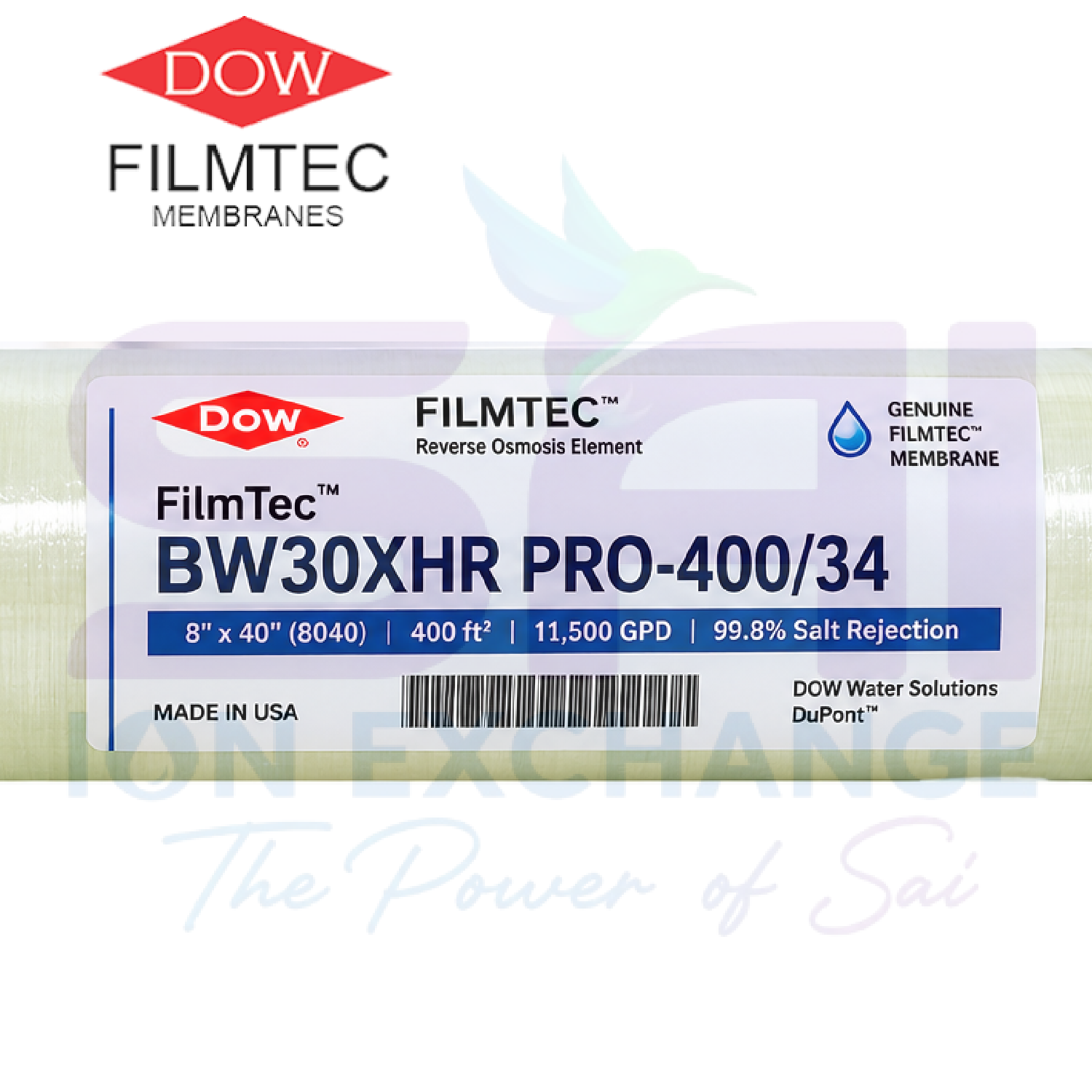

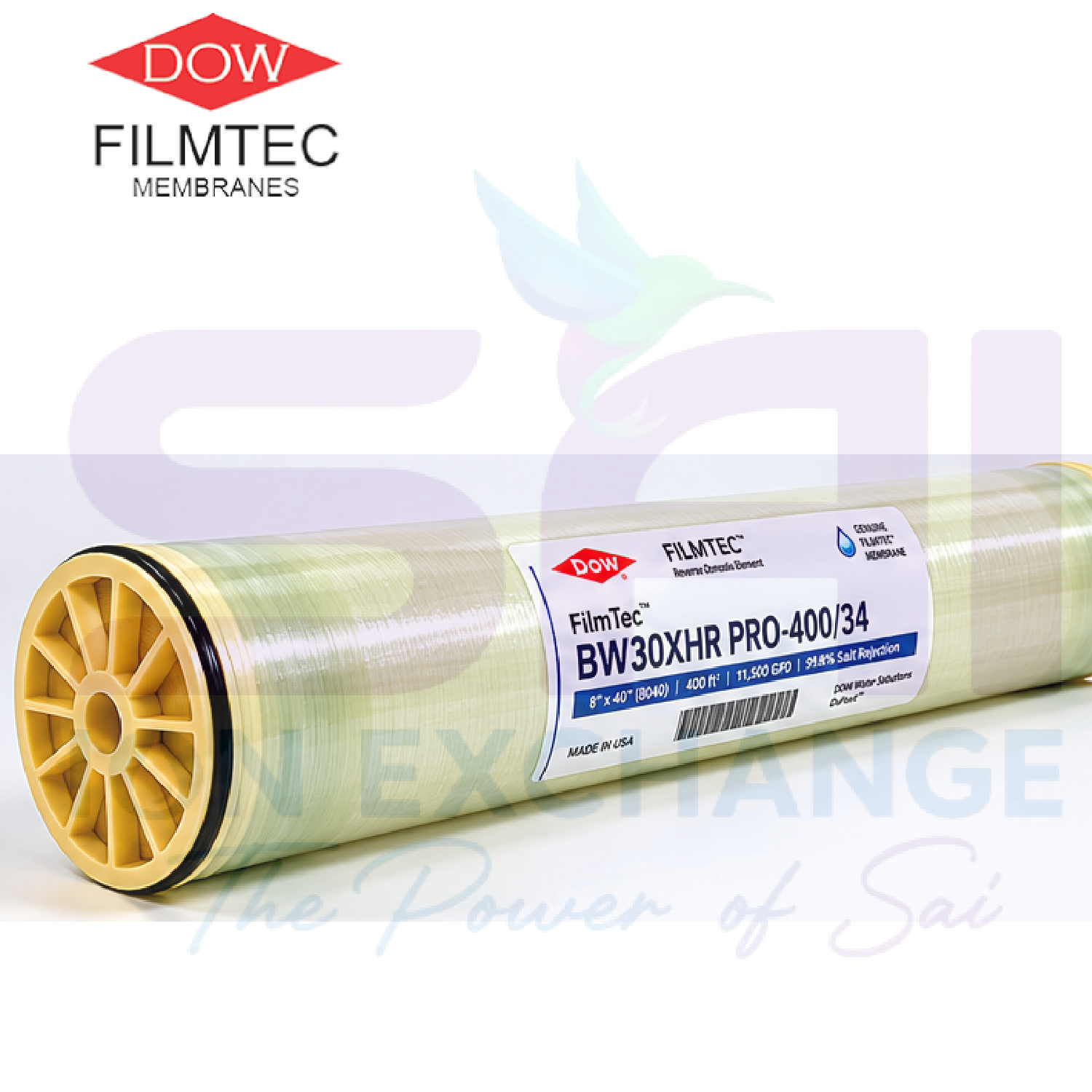

DOW FilmTec™ BW30XHR PRO-400/34 RO Membrane
Original price was: ₹ 40500.₹ 38999Current price is: ₹ 38999.
• Delivery will be made after the payment is credited to our bank account.
• Transportation charges are extra and will be charged on an actual basis.
FilmTec™ BW30XHR PRO-400/34 is an extra-high-rejection brackish water reverse osmosis membrane element designed for demanding water treatment applications where excellent permeate quality and high contaminant rejection are required.
With 400 ft² (37 m²) of active membrane area, a typical permeate flow of 11,500 GPD (43.5 m³/day) and 99.8% stabilized salt rejection, the membrane is designed for reliable performance in industrial and municipal water purification systems.
Its 34 mil low-differential-pressure feed spacer provides enhanced fouling protection and makes the element suitable for challenging feed-water conditions. The membrane is particularly suitable for applications requiring high rejection of silica, boron, nitrate, TOC and ammonium.
- Extra-high salt rejection
- 99.8% stabilized salt rejection
- 99.6% minimum salt rejection
- 11,500 GPD / 43.5 m³/day typical permeate flow
- 400 ft² / 37 m² active membrane area
- 34 mil LDP feed spacer
- Enhanced fouling protection
- Excellent silica rejection
- Excellent boron rejection
- Nitrate rejection
- TOC rejection
- Ammonium rejection
- Designed for demanding industrial applications
- Durable spiral-wound membrane element
- Suitable for municipal water purification
- Standard 8″ × 40″ industrial RO element
Product Overview
FilmTec™ BW30XHR PRO-400/34 is an extra-high-rejection brackish water reverse osmosis membrane element designed for demanding water treatment applications where excellent permeate quality and high contaminant rejection are required.
With 400 ft² (37 m²) of active membrane area, a typical permeate flow of 11,500 GPD (43.5 m³/day) and 99.8% stabilized salt rejection, the membrane is designed for reliable performance in industrial and municipal water purification systems.
Its 34 mil low-differential-pressure feed spacer provides enhanced fouling protection and makes the element suitable for challenging feed-water conditions. The membrane is particularly suitable for applications requiring high rejection of silica, boron, nitrate, TOC and ammonium.
Key Features
Model: BW30XHR PRO-400/34
Type: Extra High Rejection BWRO Membrane
Size: 8″ × 40″ / 8040
Active Area: 400 ft² / 37 m²
Flow: 11,500 GPD / 43.5 m³/day
Salt Rejection: 99.8%
Minimum Rejection: 99.6%
Feed Spacer: 34 mil LDP
Membrane: FilmTec™ RO
Application: Brackish Water Treatment
Element: Spiral-Wound
Diameter: 7.9″
Length: 40″
Technical Specifications
| Specification | Details |
|---|---|
| Brand | FilmTec™ / DuPont |
| Model | BW30XHR PRO-400/34 |
| Product Type | Extra High Rejection Brackish Water RO Membrane |
| Element Size | 8″ × 40″ / 8040 |
| Active Membrane Area | 400 ft² (37 m²) |
| Feed Spacer | 34 mil LDP |
| Permeate Flow Rate | 11,500 GPD (43.5 m³/day) |
| Stabilized Salt Rejection | 99.8% |
| Minimum Salt Rejection | 99.6% |
| Element Length | 40.0″ (1,016 mm) |
| Element Diameter | 7.9″ (201 mm) |
| Permeate Tube ID | 1.125″ (29 mm) |
| Test Feed | 2,000 ppm NaCl |
| Test Pressure | 225 psi (15.5 bar) |
| Test Temperature | 25°C (77°F) |
| Test pH | pH 8 |
| Test Recovery | 15% |
Applications
- Industrial Demineralization
- Power Generation
- Steel & Metal Industry
- Chemical Processing
- Petrochemical Industry
- Municipal Water Purification
- Industrial RO Plants
- Applications Requiring High Permeate Quality
- Process Water Treatment
- High-Purity Water Applications
